Introduction

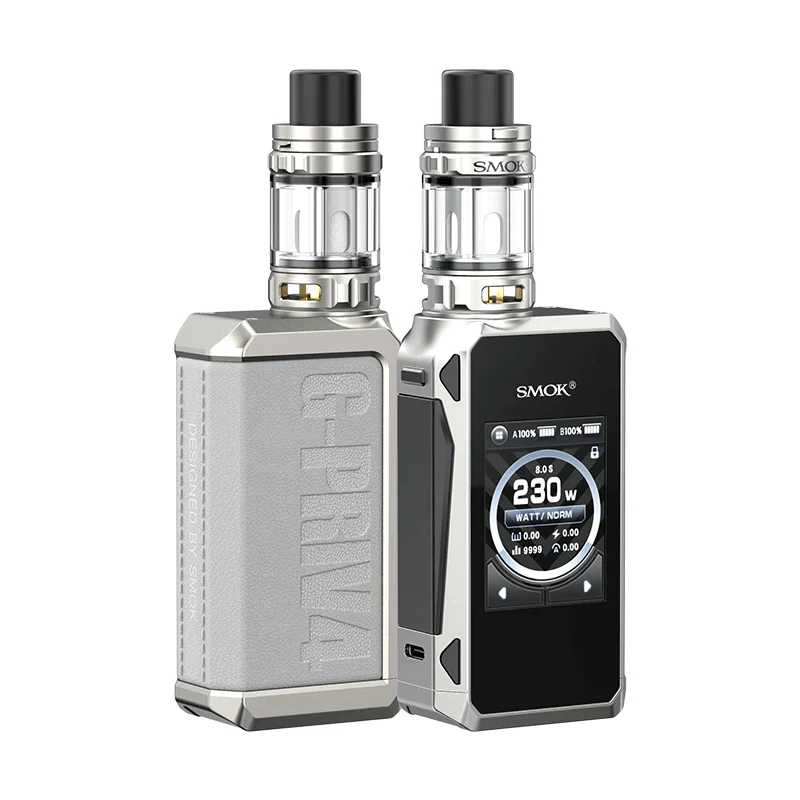

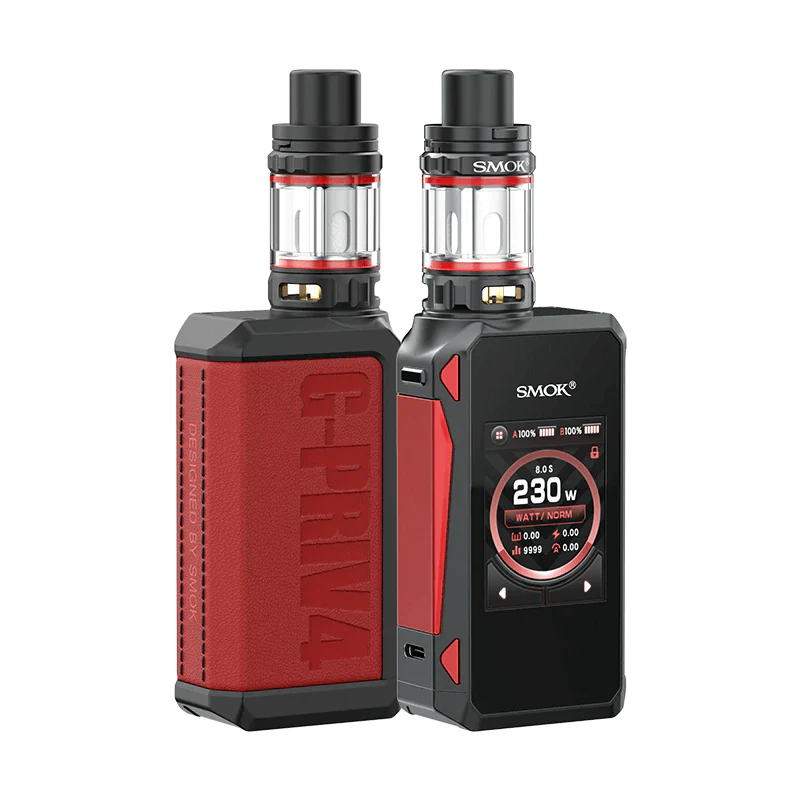

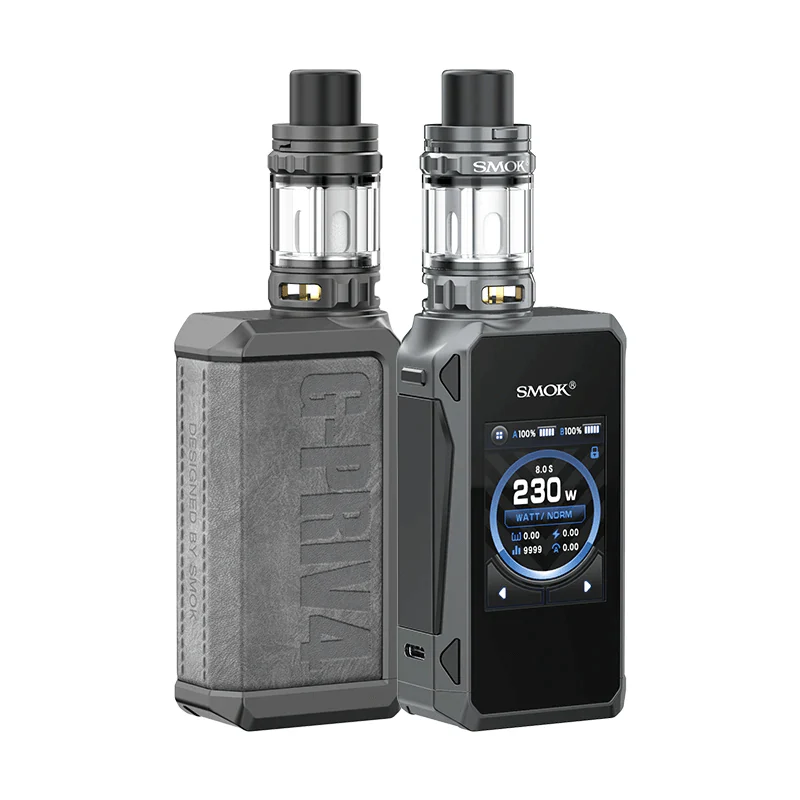

The G-Priv 4 vape kit by Smok combines high power output powered by dual 18650 batteries (not included), with multi-mode switching options to provide a maximum output of 230W with the included TFV18 Mini tank. Built with the IQ-M smart chipset, the G-Priv 4 features a 2.0inch touch-screen display, self-adaptive protections and a large fire button the length of the device for easy vaping.

Large Fire Key

The G-Priv 4 vape kit is built with a large lateral fire key on the side of the device making it easy to vape the device without having to focus on where you're pressing.

IQ-M Chip

Featuring the IQ-M chip, the G-Priv 4 provides a rapid 0.001S firing speed whilst providing a great balance of performance and reassuring stability.

Adjustable Vaping Modes

Thanks to the IQ-M chip, the G-Priv 4 device provides three separate vaping modes, including power mode and temperature control (TC), alongside 'my mode' which allows you to pre-set four sets of data referring to your desired taste to truly optimise your vape.

230W Max Power Output

Powered by two external 18650 batteries (not included), the G-Priv 4 is capable of delivering up to 230W maximum power output which makes it perfect for those looking for a powerful vape kit optimised for clouds.

Touch Screen Display

The G-Priv 4 device allows you to see and control your vape settings on an in-built 2.0inch colour display without having to navigate through buttons thanks to touch screen technology.

Type-C Fast Charging

With a Type-C charging port on the bottom of the device, the G-Priv 4 can be ready to vape after a simple quick charge meaning you're never without your sub-ohm vape kit.

Eight Safety Protections

Providing an impressive collection of safety protections, including over-heating, short circuit, power self-adaptive control and cut-off protections, you can rest assured vaping the G-Priv 4 vape kit knowing that everything is taken care of.

TFV18 Mini Tank

The G-Priv 4 vape kit includes the TFV18 Mini Tank which features a strong 510 threaded fitting, stainless steel body and wide-bore resin tip perfect for Direct To Lung (DTL) vaping.

With adjustable airflow and a choice of mesh coils, the TFV18 Mini tank can be fine tuned alongside the G-Priv 4 for an optimised vaping experience.

Compatible Coils

The TFV18 Mini tank is compatible with XXX with the G-Priv 4 vape kit introducing three coils including the V18 Mini Dual Meshed 0.15ohm coil, V18 Mini Meshed 0.33ohm coil and the optional V18 Mini Meshed 0.2ohm coil.

Top Fill Design

The TFV18 Mini tank is designed with a top fill feature meaning you don't have to remove the tank from the G-Priv 4 device to re-fill with your favourite e-liquid.

How Do I Fill The Tank?

To fill the G-Priv 4 vape kit, simply twist open the top of the TFV18 Mini tank and fill using the guidance below:

1. Twist open the top of tank to expose filling port.
2. Insert tip of e-liquid bottle and fill with 2ml of your desired e-liquid.
3. Re-twist top back into place and ensure it's secure.
4. Wait a couple of minutes before vaping.

What's In The Box?

• 1x G-Priv 4 Device
• 1x TFV18 Mini Tank (2ml)
• 1x V18 Mini Meshed 0.33ohm Coil (Preinstalled)
• 1x V18 Mini Dual Meshed 0.15ohm Coil
• 1x Glass Tube Replacement
• 1x Type-C Cable
• 1x User Manual

TFV18 Mini Tank Specifications

• Material: Stainless Steel
• Size: 28*59mm
• Weight: 66g
• Capacity: 2ml
• Thread: 510

G-Priv 4 Device Specifications

• Size: 90*50.8*29mm
• Weight: 167.4g
• Power Range: 5W-230W (VW) / 10W-230W (TC)
• Input Voltage: 6.4V-8.4V
• Output Voltage: 0.5V-8.2V
• Standby Current: <400uA
• Max Output Current: <50uA (When resistance is below 0.1ohm)
• Resistance Range: 0.1ohm-2.5ohm (VW) / 0.05ohm-2.0ohm (TC)
• Temperature Range: 100°C-315°C / 200°F-600°F
• Charging Voltage: 5V±0.2V
• Charging Current: Max 2.0A
